When we think about setting up a reliable and organized system for our technology, we realize that a well-planned installation is essential. A network rack serves as the heart of our equipment, bringing together switches, routers, servers, and more in one controlled space. This setup not only enhances organization but also improves cooling and maintenance access.

For instance, in a typical home or small office, we might utilize a compact solution like the StarTech 19-inch 8U wall-mount rack. This model is ideal for housing devices such as switches, a firewall-router, and a NAS, while also allowing for effective cable management. With clearly marked rack units and designated cable openings, we can keep everything neat and accessible.

Our upcoming guide will cover everything from selecting the right rack to space planning and equipment placement. By carefully planning our setup, we can avoid common pitfalls like overheating and tangled cables. It’s important to remember that some tasks may require the expertise of professionals, especially when dealing with electrical bonding and code-sensitive work.

• A network rack is vital for organizing and managing technology equipment.
• Effective planning prevents issues like overheating and accessibility problems.
• Choosing the right rack can enhance cable management and airflow.
• Our guide will help with every aspect of the setup process.
• Some tasks may require professional assistance for safety and compliance.

Establishing a reliable environment for our tech devices hinges on meticulous planning. A well-executed installation can significantly enhance the performance and longevity of our equipment. By ensuring proper airflow and organized cabling, we reduce the chances of hardware failure and make maintenance much easier.

However, many of us face challenges during the setup process. Common issues include tangled cables, inadequate ventilation, and overloaded racks. For instance, one home installation required us to correct poorly executed structured wiring. We had to re-punch Cat5e terminations and replace unstable furniture with a secure wall-mounted rack.

A properly installed rack protects our network’s physical organization. It gives each device a defined position, keeping connections visible and accessible. This clarity allows us to identify equipment quickly, trace cables, and reach ports without dismantling the entire setup.

Moreover, effective installation minimizes troubleshooting time. When we can easily access components, we can replace them without hassle. This streamlined approach is crucial for maintaining our equipment’s performance and ensuring it operates at its best.

Thermal management is another critical factor. Open airflow paths and adequate clearance around hot devices reduce the risk of premature equipment failure. Yet, many installations overlook these aspects, leading to potential issues down the line.

Additionally, we must avoid common mistakes. Placing equipment on unstable furniture or failing to secure a wall-mounted rack can lead to accidents. Bundling cables too tightly or ignoring future growth can also create significant challenges.

Poor structured wiring can exacerbate these problems, resulting in damaged cables and inaccessible runs. Ensuring our setup adheres to professional standards is essential for achieving safer, cleaner, and more maintainable results.

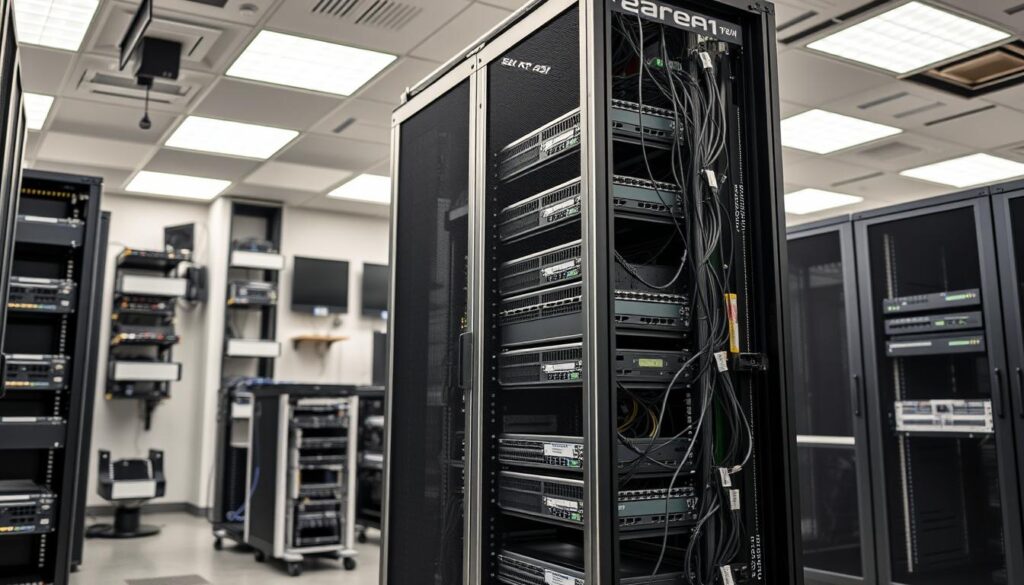

The choice of rack type and dimensions plays a significant role in the overall performance of our equipment. By understanding the different types of racks available, we can better meet our specific needs. Each type offers unique advantages and limitations that affect our setup.

Two-post racks are compact and economical choices for lightweight devices. They are ideal for switches and patch panels that do not require deep support. These racks utilize two vertical mounting posts, making them suitable for limited depth requirements.

On the other hand, four-post racks provide better support for deeper or heavier servers. With front and rear rails, they allow for adjustable depth, making them perfect for equipment like UPS systems and storage devices. This design ensures stability and accessibility for our essential hardware.

Open-frame racks excel in airflow and easy access, which is beneficial for cooling. However, they offer little dust protection and security. This makes them suitable for server rooms and controlled environments where physical access is monitored.

In contrast, enclosed cabinets provide doors and side panels for enhanced security and dust control. They are ideal for offices and areas where equipment needs protection from the environment. However, these cabinets may require additional cooling to maintain optimal airflow.

One rack unit, often denoted as 1U or 1RU, equals 1.75 inches of vertical height. Understanding this measurement is crucial when planning our setup. Common rack heights range from approximately 8U to 48U or more, while depths typically vary from 24 to 48 inches.

To calculate our required capacity, we should add the height of current equipment, cable-management space, power equipment, and ventilation gaps. It’s also wise to reserve some space for future expansion. Additionally, we must consider rack width, depth, load rating, and available clearance to ensure our setup is both efficient and safe.

Before we start drilling or connecting our equipment, we must prioritize careful planning. This stage is crucial for ensuring that our setup is both functional and efficient. A well-thought-out plan will help us avoid common pitfalls and ensure that everything fits perfectly in our designated space.

To begin, we need to measure the height, width, and depth of our equipment. We should also account for cable clearance and mounting requirements. This information is essential for selecting the right rack and ensuring a smooth installation process.

We should start with a complete inventory of our current and planned equipment. It’s important to record each device’s U-height, width, depth, weight, power draw, mounting method, and cable-entry direction. This will give us a clear picture of what we need to accommodate.

Next, we need to measure the proposed room or closet. We must confirm that the rack will not block doors, walkways, electrical panels, HVAC access, or other service areas. Ensuring proper access is vital for maintenance and safety.

We should reserve front, rear, and side clearance to install hardware, remove covers, route cables, clean filters, and inspect connections safely. Evaluating wall studs, backing material, floor construction, and fastener requirements is essential before selecting a wall-mounted or floor-standing rack.

Additionally, we must plan for heat-producing equipment, such as servers, NVRs, storage devices, and UPS systems. Leaving ventilation gaps and avoiding blocked intake or exhaust paths will help maintain optimal performance.

It’s wise to add dedicated capacity for future switches, patch panels, PDU equipment, shelves, cable managers, and unexpected network expansion. Instead of filling every available U immediately, we should leave 10-20% of the rack unoccupied. Another guideline is to add approximately 25% capacity for growth.

Patch panels may require additional space above or below for patch-cord routing. By considering these factors now, we can ensure our setup remains flexible and efficient as our needs evolve.

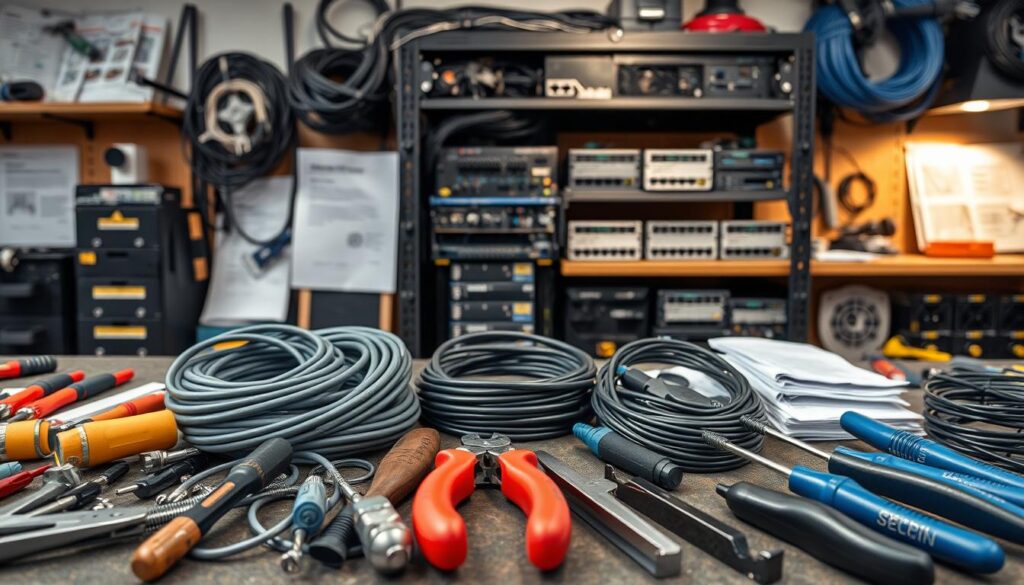

To ensure a smooth setup, we must gather the right tools and materials before we begin. Having everything ready will make our installation process more efficient and effective. Below, we outline the essential items needed for a successful setup.

First, let’s discuss the basic tools required for our project. We will need:

• Measuring tape – for accurate measurements of space and equipment.
• Level – to ensure everything is aligned correctly.
• Drill – for creating holes in walls or surfaces.
• Drill bits – suitable for the material we are working with.
• Screwdrivers – Phillips and flathead for various screws.
• Socket tools – for tightening bolts and nuts.
• Marking pencil – to mark locations for drilling.

Next, we should consider cable management accessories. These items help keep our setup organized and functional:

• Hook-and-loop straps – for bundling cables together.
• Cable ties – for securing cables in place.
• Horizontal and vertical organizers – to route cables neatly.
• D-rings – for guiding cables along walls.
• Patch-cord managers – to keep patch cables tidy.
• Labels – for identifying cables and connections.
• Shelves – for additional storage of equipment.

Lastly, safety equipment is crucial during our installation. We should always prioritize safety to prevent accidents:

• Gloves – to protect our hands while handling equipment.
• Safety glasses – to shield our eyes from debris.
• Stable ladders – if we need to reach high places.
• Safe lifting practices – especially when handling heavy items.

When assembling our setup, remember to verify fastener sizes, wall construction, and rack load ratings. Always follow manufacturer instructions for a secure and reliable installation.

Choosing the right equipment storage solution is vital for ensuring efficiency and functionality. The ideal choice depends on our specific needs, including the type of equipment we have and the space available. By carefully evaluating our requirements, we can select a rack that not only meets our current demands but also allows for future growth.

Understanding the size and depth of the rack is essential. A 19-inch rack is standard for many types of hardware, while server racks may require deeper dimensions. It’s crucial to verify the usable depth rather than relying solely on the advertised exterior dimensions. Rear connectors and power cords can take up valuable space.

When selecting a rack, we should match its internal U-capacity to our equipment list. This includes considering cable-management requirements, PDU placement, and ventilation gaps. Planning for future expansion is also wise. Leaving some space unoccupied allows us to accommodate new devices without hassle.

Wall-mounted racks are perfect for compact environments like homes and small offices. They save floor space while providing a secure location for essential equipment. However, floor-standing racks offer greater capacity and are better suited for larger setups, such as multiple servers or extensive patch panels.

Here’s a quick comparison:

Material quality is another critical factor. We should assess steel thickness, weld quality, and the overall construction of the rack. A well-built rack should remain stable and support fully loaded equipment. It must also allow for future maintenance and provide practical cable access without forcing sharp bends.

Security features, such as lockable doors, can also be essential, especially in shared environments. By prioritizing these factors, we ensure our equipment remains safe and accessible.

“The best equipment storage solution is one that combines functionality with future scalability.”

In conclusion, selecting the right rack involves careful consideration of size, type, and build quality. By focusing on our specific needs and future requirements, we can create a reliable and efficient setup.

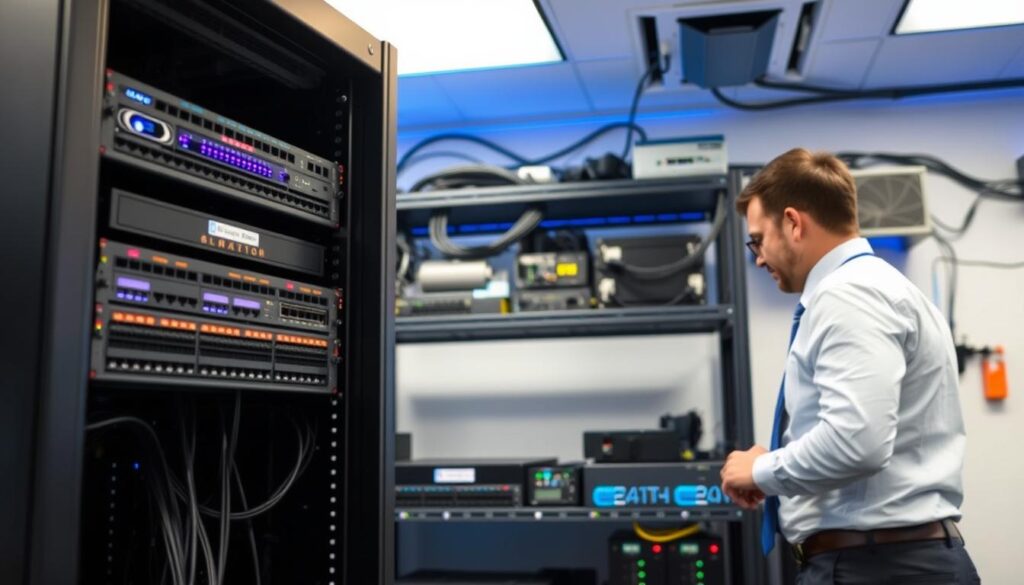

Setting up a functional equipment space requires a clear and systematic approach. By following a structured process, we can ensure that our setup is both efficient and reliable. This section outlines the essential steps for a successful installation.

First, we need to confirm the rack location against our floor plan. This involves considering equipment dimensions, cable-entry points, electrical supply, ventilation, and structural support. Proper placement is crucial for accessibility and performance.

For a wall-mounted rack, we must identify the studs or install a properly secured backing board. One effective method involves using a 27-by-48-inch section of 3/4-inch cabinet-grade plywood. Secure this board with nine 2.5-inch screws, allowing the rack to be positioned where needed between irregularly spaced studs.

Next, we assemble the rack according to the manufacturer’s instructions. It’s important to check that rails, panels, doors, shelves, and grounding points are installed correctly before loading any equipment. A StarTech 8U rack, for example, requires only 16 assembly screws and can be put together in approximately five minutes with a Phillips screwdriver.

Once assembled, we use a level to mark a square and plumb mounting position. This step is vital for ensuring that the rack is installed correctly. We then transfer the rack-hole pattern to the studs, structural backing, or a suitable floor base.

For irregular stud spacing, a properly secured plywood backing board creates a strong, flexible mounting surface. Ensure that the wall structure and fasteners are appropriate for the load.

Pre-drill where necessary, and install the specified bolts or anchors with washers. It’s crucial to verify that the rack cannot shift, tilt, pull away from the wall, or rock under load. After securing the rack, we can install the PDU and other foundational hardware before loading devices.

Finally, confirm that the rack remains stable as weight is added from the bottom upward. By following these steps, we ensure a safe and effective installation.

Loading our equipment into the designated space requires careful consideration to ensure safety and efficiency. Proper placement of devices can significantly impact performance and longevity. We must focus on the center of gravity, device function, and airflow while planning our setup.

To achieve stability, we should position heavy equipment, such as servers and UPS units, near the bottom. This lowers the center of gravity and reduces the risk of tipping. It’s essential to install rails and brackets according to the manufacturer’s instructions and align front and rear supports correctly.

A typical home setup might place a rack-mounted PDU at the bottom, switches and other equipment in the middle, and non-rack-mountable devices on a secured upper shelf. Additionally, hot equipment may require an extra 1U of ventilation space, while patch panels benefit from reserved cable-management space nearby.

We should load the heaviest devices first and place them in the lower rack positions. This approach improves stability and reduces stress on wall mounts, rails, and fasteners. Using manufacturer-approved rails, shelves, cage nuts, and screws is crucial. We must check that every device is supported at both the front and rear when the rack design requires it.

Grouping devices by function is essential. We can place patch panels near the network switches they serve. Additionally, firewalls, routers, NVRs, storage, and wireless hardware should be positioned where their connections remain accessible. This organization helps maintain a clear and efficient setup.

We must maintain clear intake and exhaust paths to avoid blocking fan vents. Leaving additional space around servers, NVRs, UPS units, and other heat-producing hardware is vital for effective cooling. Furthermore, we should keep the power layout deliberate by positioning the PDU for short, low-tension power runs. Separating power and data paths where practical will enhance safety and performance.

Effective cable management is a crucial element in ensuring our equipment operates smoothly and efficiently. By organizing our cables properly, we can enhance both performance and maintenance. In this section, we will explore best practices for planning cable routes, using organizers, and implementing structured cabling techniques.

Before connecting devices, we should plan our cable paths carefully. It’s important to separate power and data routes whenever possible. Keeping cables away from sharp edges, heat sources, and moving doors will prevent damage and maintain safety.

We must also ensure that our cables do not obstruct service areas. Proper routing minimizes the risk of tangled wires and allows for easier access during maintenance. Using horizontal and vertical cable managers can help support cables without compressing or sharply bending them.

When it comes to securing cables, we recommend using hook-and-loop straps instead of tight nylon ties. These straps are adjustable and reusable, reducing the risk of damaging cable jackets. They also make future maintenance easier.

In addition to straps, we can utilize cable organizers such as D-rings and brush panels. These tools help keep our cables tidy and allow for efficient airflow around devices. Proper organization also aids in identifying connections quickly during troubleshooting.

Utilizing patch panels is an effective way to manage our connections. We should route permanent horizontal cabling into these panels and use short patch cords to connect them to switches, routers, and firewalls. This method not only keeps our setup organized but also enhances performance.

It’s essential to select quality patch cords that meet or exceed the ratings of our permanent cabling. Avoiding thin-gauge stranded cords that do not comply with standards will ensure reliability. Additionally, we should leave enough vertical space around patch panels for effective patch-cord management, ideally around 2U for a 1U panel.

Creating a clear labeling system is essential for maintaining our equipment effectively. Proper labeling helps us identify cable destinations, patch-panel ports, switches, outlets, and more. This organization is crucial for efficient troubleshooting and maintenance.

Every permanent cable should have a durable identifier at the rack and, where practical, at the remote outlet, access point, camera, or other endpoint. Matching each patch-panel port with its destination, switch port, VLAN, or service description is vital. This clarity helps us avoid confusion during maintenance.

For home or small-office systems, we can use simple descriptive identifiers. Examples include “PP1- Port 12 – Office 2 Wall Jack” or “PP2- Port 04 – Upstairs Wi-Fi AP.” These labels should be easy to read without becoming cluttered.

We recommend adding labels to patch panels, switches, power distribution equipment, shelves, rack units, cable bundles, and any device whose purpose may not be obvious during a future service call. Keeping a rack elevation and cable schedule updated is essential whenever a cable, port, device, panel, or power connection changes.

Commercial installations may follow contract-specific requirements or ANSI/TIA-606-D administration guidance. Residential telecommunications installations can reference ANSI/TIA-570-E. Documentation should be corrected after last-minute changes and kept in a durable format, such as a laminated rack schedule.

By adhering to these guidelines, we can ensure that our labeling system supports efficient maintenance and enhances the overall functionality of our setup.

Ensuring the safety and efficiency of our equipment setup requires a thorough understanding of bonding and grounding. These practices are essential for preventing electrical hazards and ensuring reliable performance in our systems.

Grounding is a fundamental safety measure that connects our systems to the earth, helping to prevent electrical shocks and fires. It provides a path for excess electricity to dissipate safely. Without proper grounding, we risk damaging our equipment and compromising safety.

In practical terms, grounding connects our system to the appropriate grounding infrastructure, while bonding creates a controlled conductive connection between metal components. This distinction is crucial for understanding how to protect our equipment effectively.

For shielded Ethernet systems, consistent bonding of shielded cables, connectors, patch panels, and related hardware is vital. A common practice involves bonding a shielded patch panel to a rack-mounted copper busbar. This busbar connects to the appropriate bonding infrastructure, ensuring reliable performance.

Each rack enclosure should also be bonded using its designated bonding point. It’s important to note that relying on a router or switch’s three-prong AC power cord for bonding is inadequate. Proper bonding techniques are essential to prevent serious risks in commercial or high-voltage environments.

When it comes to bonding and grounding, following industry standards is crucial. ANSI/TIA-607-E provides guidelines for telecommunications bonding and grounding. Local electrical codes and qualified professionals govern code-sensitive work, especially in high-voltage environments.

Residential and commercial requirements differ significantly. In cases of uncertain grounding conditions or service-panel connections, we should always consult a licensed electrician or qualified telecommunications professional. This ensures that our installations meet safety standards and perform optimally.

Finally, documenting bonding connections alongside the rack elevation, patch-panel schedule, equipment inventory, and maintenance records is recommended. This practice helps future technicians verify the system safely and efficiently.

Planning and organization are the cornerstones of a successful tech setup. A well-executed process ensures our equipment is secure, accessible, and adequately ventilated. To achieve this, we should:

• Measure accurately and select the right rack type with sufficient U-capacity.
• Place heavy devices like servers and UPS systems low in the rack to maintain stability and airflow.
• Route cables carefully, using quality patch cords, and protect their bend radius.
• Label every cable and port for efficient maintenance and troubleshooting.
• Organize patch panels and power distribution to facilitate future upgrades and expansions.

Finally, we should conduct thorough checks for stability, connectivity, and clear service access. While many tasks can be handled independently, structural mounting and code-sensitive work should be evaluated by professionals to ensure safety and compliance.
